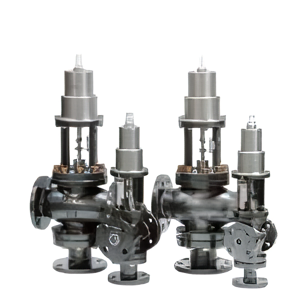

On/off valves
- Series VPFA
General service shut-off valve
Materials:GS400-12 Nodular Cast Iron (GGG40)
Size:DN 15 — 65
Pressure Rating: PN16
Temperature: -5°C/+180°C
- Series VPFA/3
3-Way diverting general service valve
Materials:GS400-12 Nodular Cast Iron (GGG40)
Size:DN 15 — 65
Pressure Rating: PN16
Temperature: -5°C /+180°C
- Series VPOO EURO
2-Way valve
Materials:GS400-12 Nodular Cast Iron (GGG40)
Size:DN 15 — 100
Pressure Rating: PN16
Temperature: -5°C /+205°C
- Series VPOO
2-Way valve
Materials:GS400-12 Nodular Cast Iron (GGG40), A216 WCB Carbon Steel, AISI 316 Stainless Steel (CF8M)
Size:DN 15 — 100
Pressure Rating: PN16, PN40
Temperature: -20°C /+205°C
- Serie VPOO-2000
Heavy-duty 2-Way globe shut-off valve
Materials:GS400-12 Nodular Cast Iron (GGG40), A216 WCB Carbon Steel, AISI 316 Stainless Steel (CF8M)
Size:DN 15 — 150
Pressure Rating: PN16/40, ANSI150/ANSI300
Temperature: -196°C /+350°C
- Series VPOO/3
3-Way diverting valve
Materials:GS400-12 Nodular Cast Iron (GGG40), A216 WCB Carbon Steel, AISI 316 Stainless Steel (CF8M)
Size:DN 15 — 100
Pressure Rating: PN16, PN40
Temperature: -20°C /+205°C
- Series VPOO/3 tipo 2003
Heavy-duty 3-Way diverting valve
Materials:AISI 316L Stainless Steel (1.4404)
Size:DN 15 — 150
Pressure Rating: PN16, PN40, ANSI 300
Temperature: -196°C /+350°C
- Series VPFL/BW
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 200
Pressure Rating: PN 16 (15-150) – PN 10 (200)
Temperature: -30°C /+150°C
- Series VPFL – FL UNI PN 10/16
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 200
Pressure Rating: PN 16 (15-150) – PN 10 (200)
Temperature: -30°C /+150°C
- Series VPFL-FF-SW
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 — 50
Pressure Rating: PN 25
Temperature: -30°C /+150°C
- Series NPFL/BW
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 100
Pressure Rating: PN 16
Temperature: -30°C /+200°C
- Series NPFL – FL UNI PN 10/16
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 100
Pressure Rating: PN 16
Temperature: -30°C /+200°C
- Series NPFL/FF – SW
Angle seat pneumatic shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 50
Pressure Rating: PN 25
Temperature: -30°C /+200°C
- Series SBS/S – BW
2/3-Way shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 150
Pressure Rating: PN 16 (15-125) – PN 10 (150)
Temperature: -30°C /+150°C
- Series SBS/S – FL UNI PN 10/16
2/3-Way shut-off valve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 15 – 150
Pressure Rating: PN 16 (15-125) – PN 10 (150)
Temperature: -30°C /+150°C
- Series MVPFL/BW
Angle seat shut-off microvalve
Materials:AISI 316L Stainless Steel (1.4409)
Size:DN 8 – 25
Pressure Rating: PN 16
Temperature: da -30 a +150 °C – ( picco max 180 °C )
- Series MVPFL – FL UNI PN 10/16
Angle seat shut-off microvalve
Materials:AISI 316L Stainless Steel (1.4409)
Size:DN 8 – 25
Pressure Rating: PN 16
Temperature: da -30 a +150 °C – ( picco max 180 °C )
- Series MVPFL/FF – SW
Angle seat shut-off microvalve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 8 – 25
Pressure Rating: PN 25
Temperature: da -30 a +150 °C – ( picco max 180 °C )
- Series MVPS/BW
Angle seat shut-off microvalve
Materials:AISI 316/316L Stainless Steel (1.4408/1.4409)
Size:DN 8 – 25
Pressure Rating: PN 16
Temperature: da -30 a +150 °C – ( picco max 180 °C )
